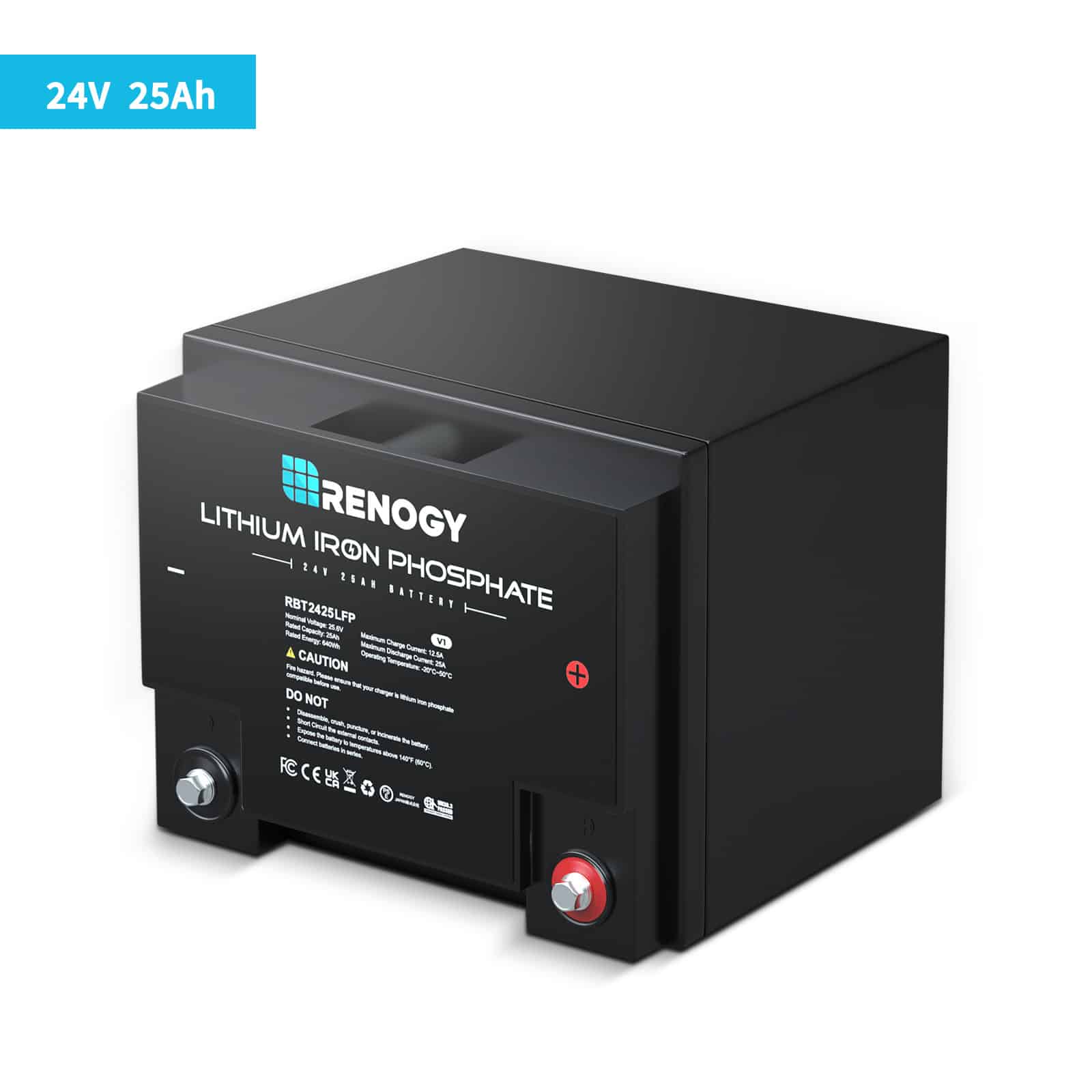

24V 25Ah LifePO4 Battery

One-step power solution for your 24V power system. The Renogy 24V Lithium Iron Phosphate Battery is designed for the drop-in
replacement of AGM and GEL batteries. Upgrade your power system with this light, compact, safe, and powerful 24V LiFePO4 Battery.

Offer an exceptional life span of 5 years and more than 2000 cycles, built-in BMS system for safe charging and discharging,
IP65 waterproof, and fast charging speed. It can be utilized for golf carts, medical computer carts, wheelchairs, electric pallet jacks, and other off-grid systems.

KEY FEATURE:

• Uncompromising Quality – Exceptional lifespan with more than 2000 cycles (80% DOD), 4 times of lead-acid battery. Wide discharging temperature range from -4°F to140°F, IP65 waterproof. Fearless of extreme climates, back up your wild adventures.
• Easy Upgrades – A space-saving choice for your 24V power system. Upgrades from lead-acid to lithium seamlessly with a greater energy density, 100% usable capacity and a faster-charging speed.
• Longer Shelf Life – Automatically switch to energy-saving mode in 30s. The self-discharge rate is as low as 3% per month. Offers good performance on storage and endurance.
• Safe and Reliable – The state-of-the-art battery management system (BMS) provides short circuits, overcharging, and over-temperature protection while maintaining a balanced voltage across all cells. Ensures reliable power output and a longer lifespan.
• Powerful Output – Up to 8 batteries can be easily connected in parallel. Auto-balancing function, improve the average charging efficiency of your batteries over extended use.
• Certified Performance – Reliable output and ultra safety. Performance certified with MSDS, UN38.3, FCC, CE, UKCA, PSE.
  IP65 waterproof, protected against water and dust with the fully sealed housing.
• Battery Type: Lithium Iron Phosphate
• Nominal Voltage: 25.6V
• Rated Capacity: 25Ah (0.2C, 25℃)
• Charge Voltage: 29.0V±0.2V
• Maximum Charge Current: 25A
• Maximum Discharge Current: 25A
• Cycle Life: >2000 Cycles (0.2C, 25℃, 80% DOD, 80% EOL)
• Charge Temperature Range: 32°F~113°F (0°C~55°C)
• Discharge Temperature Range: -4°F~140°F (-20°C~60°C)
• Storage Temperature Range: Less Than 1 Year: 32°F~77°F (0°C~25°C)
• Less Than 3 Months: 14°F~95°F (-10°C~35°C)
• Operation Relative Humidity: 10%~95%
• Self-Discharge Rate: ≤3%/Month (Shelf Mode)
• Internal Resistance: <40mΩ
• Tail Current: 1.25A
• Peukert Exponent: 1.05
• Connection Method: Parallel (Up to 8)
• Terminal Bolt Size: M8 x 1.25 x 12 mm
• Recommended Terminal Torque: 88.5 inch·lbs~106.2 inch·lbs (10 N·m~12 N·m)
• Housing Material: ABS
• Protection Rating: IP65
