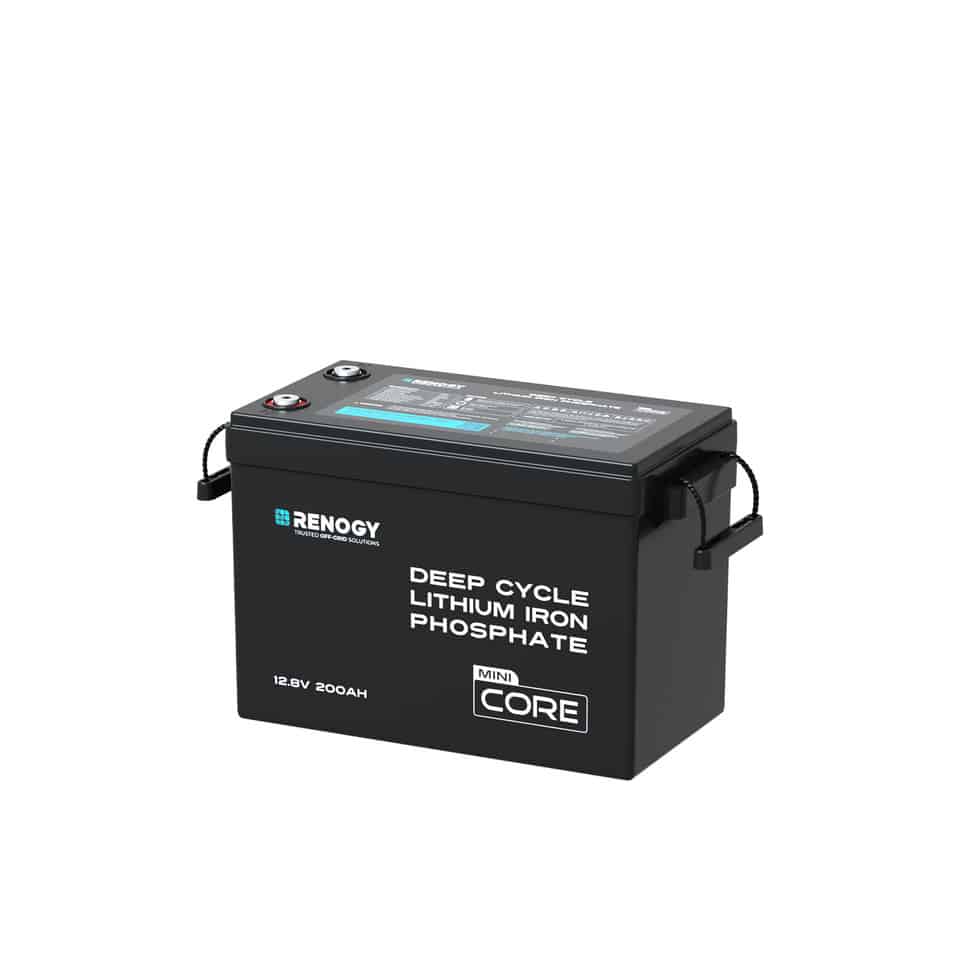

12V 200Ah CORE Mini LifePO4 Battery

The Renogy Core Series 12.8V 200Ah Mini Deep Cycle Lithium Iron Phosphate Battery is designed for the drop-in replacement of deep-cycle lead-acid batteries with its standard Battery Council International (MCI) group size. Weighing only half of the lead-acid counterparts, the battery can be safely discharged to 100% Depth of Discharge (DOD), delivering twice the energy. Manufactured with automotive grade battery cells, the battery features the highest safety standards and an extended 5000+ cycle life.

In addition, the reliable Battery Management System (BMS) provides comprehensive protection to the battery.

• Unparalleled Performance Features a greater energy density, a deeper discharge capability, a higher round-trip efficiency, and a faster charging speed in a smaller size over counterparts in the market.
• Uncompromising Quality Ensures an exceptional lifespan with more than 5000 cycles (80% DOD), a continuous charge current of 100A and continuous discharge current of 200A, and a wide range of operating temperatures with the automotive grade battery cells.
• Reliable Protection Mechanisms Designed with a sturdy internal structure for RV use, and includes multiple levels of protection such as low temperature cut-off and precise balancing through the smart battery management system.

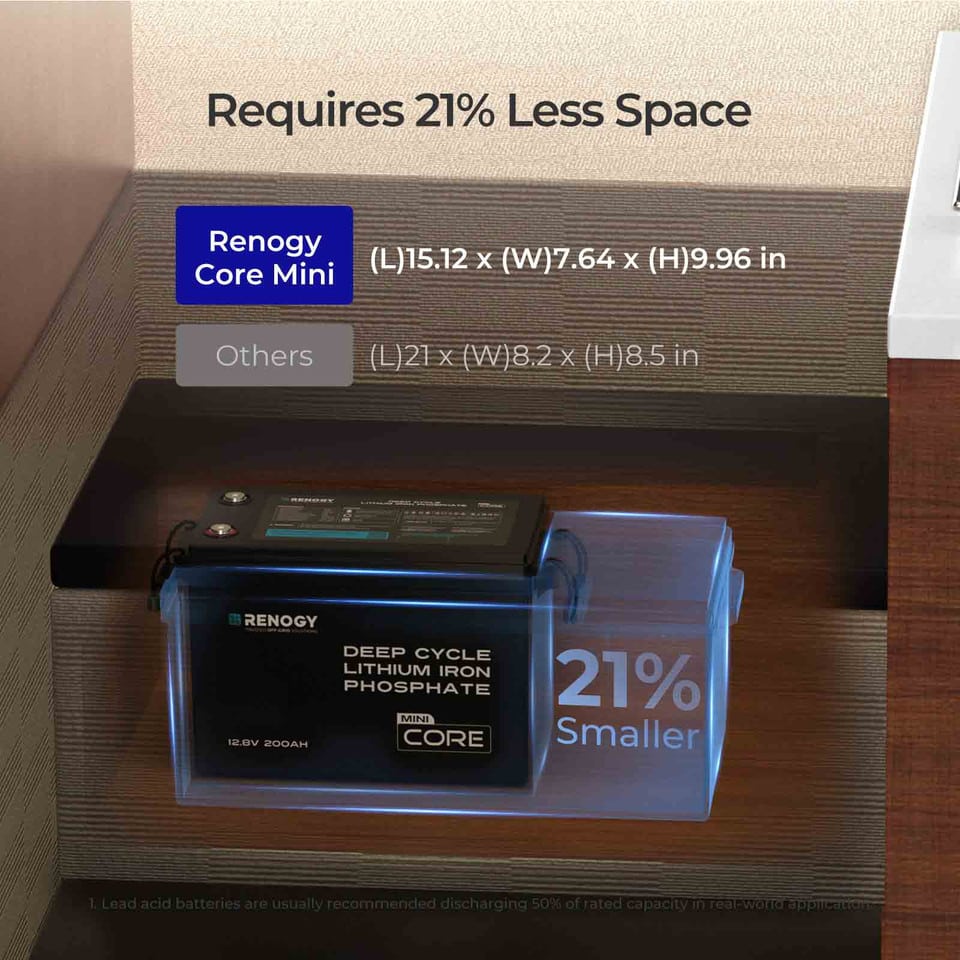

• Equal Capacity in a Compact Size Provides equal capacity in a more compact size that its counterparts.
• Easy to Expand Upgrades to Lithium batteries seamlessly with the standard BCI group sizes: up to 16 batteries in 4 series and 4 parallels system connection delivering a maximum of 48V (51.2V0 800Ah with 40.96kWh.
• Battery Cell Type: Lithium Iron Phosphate / Prismatic Cell
• Rated Capacity: 200Ah * Nominal Voltage: 12.8V
• Voltage Range: 10V to 14.8V
• Cycle Life: 5000 Cycles
• Connection Method: Series (4S) & Parallel (8P)
• Terminal Bolt Size: Terminal Bolt: M8 x 1.25 x 12mm / Long Terminal Bolt: M8 x 1.25 x 16mm
• Recommended Terminal Torque: 8N٠m
• Protection Rating: IP65
• Certification: MSDS, UN38.3, IC, FCC, CE, PSE, RCM, RoHS and UKCA
• Charge Voltage: 14.4V
• Maximum Continuous Charge Current: 100A
• Maximum Continuous Discharge Current: 200A
• Peak Discharge Current: 380A @ 10s

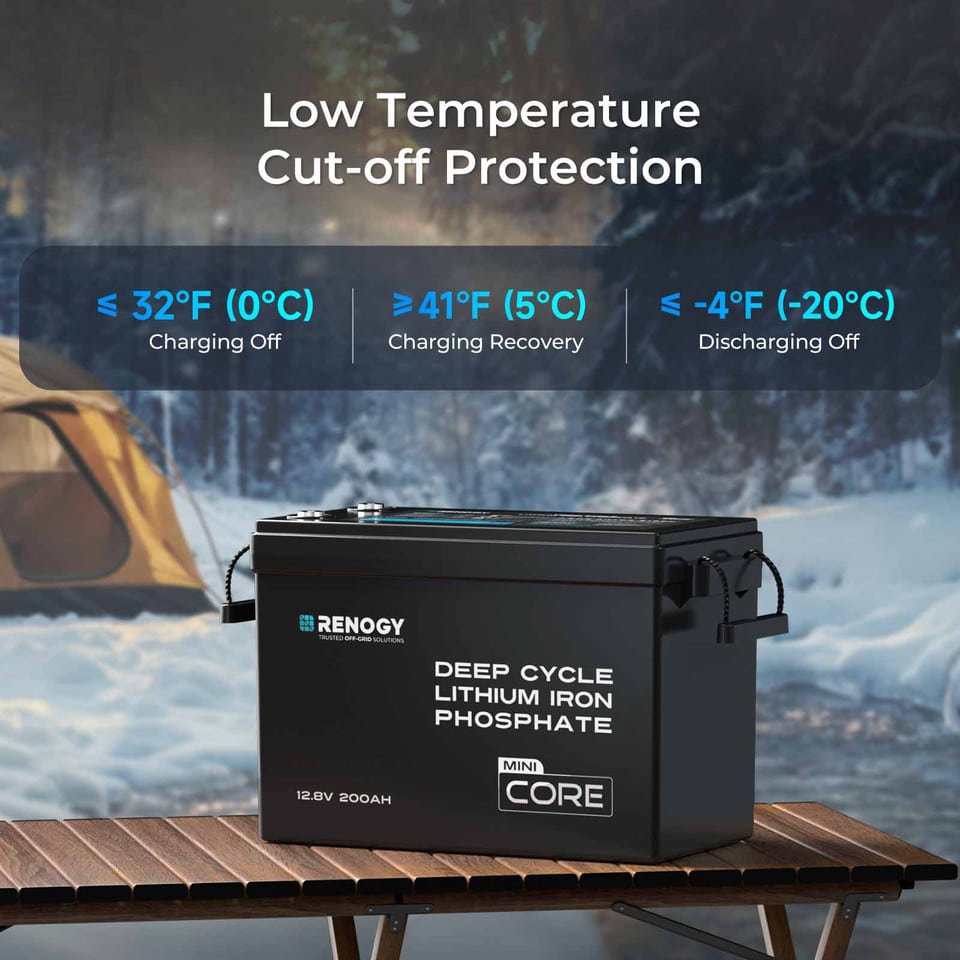

• Charge Temperature Range: 0°C to 55°C
• Discharge Temperature Range: -20°C to 65°C
• Storage Temperature Range: -25°C to 60°C
• Operation Relative Humidity: 5% to 95%
