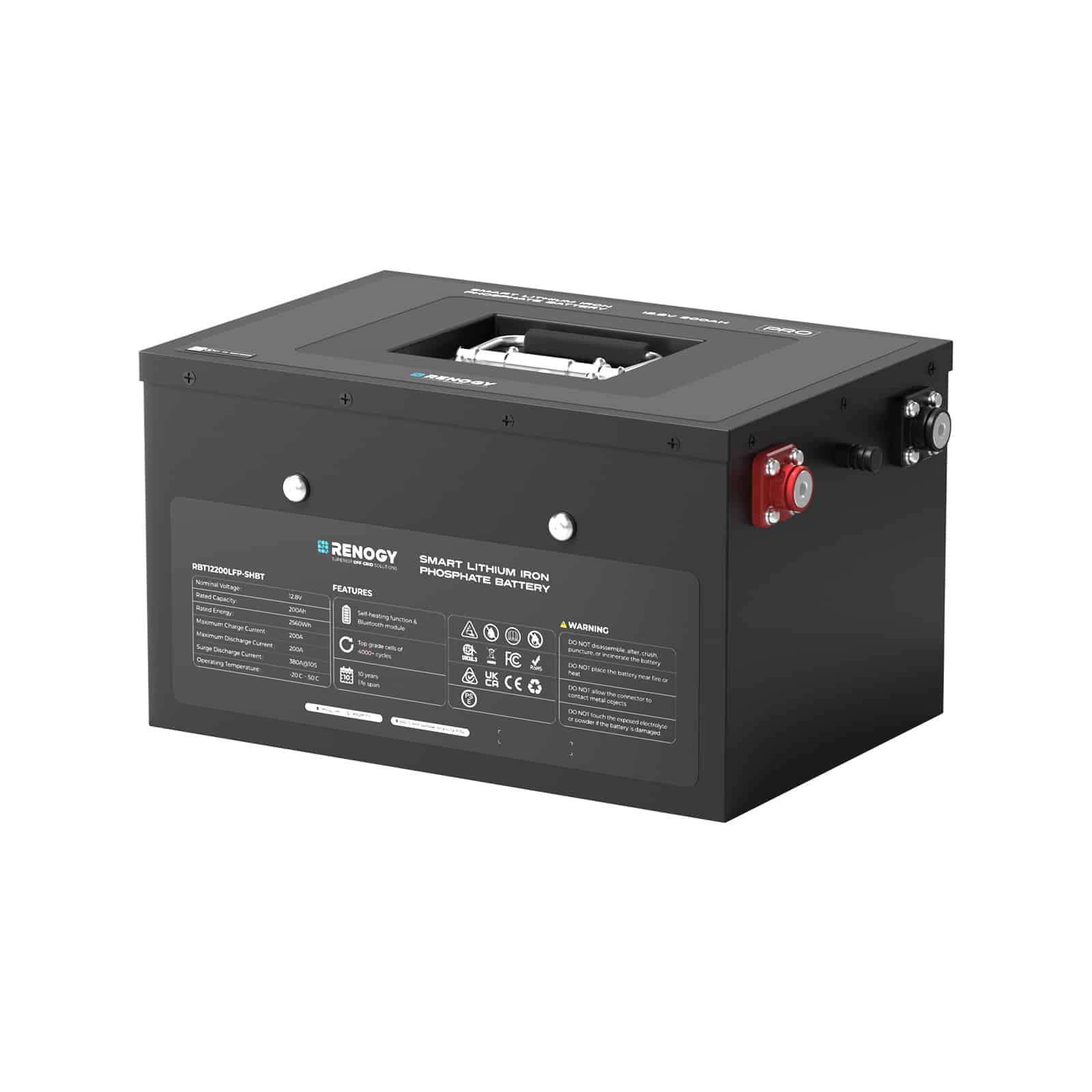

12V 200Ah Pro Underseat Smart LifePO4 Battery

The Renogy Pro Series 12.8V 200Ah Under seat Lithium Iron Phosphate Battery adopts a proprietary battery housing material in a smaller size for your RVs, solar setups, trolling motors, wind and marine applications, camping, off-grid systems and more.

Weighing only half of the lead-acid counterparts, the battery can be safely discharged to 100% Depth of Discharge (DOD), delivering twice the energy. Manufactured with automotive grade battery cells, the battery features the highest safety standards and an extended 5000+ cycle life. In addition, the smart Battery Management System (BMS) provides comprehensive protection to the battery.

KEY SPECIFICATION:

• Unparalleled Performance – Features a greater energy density, a deeper discharge capability, a higher round-trip efficiency and a faster charging speed in a smaller size over counterparts in the market.
• Uncompromising Quality – Ensures an exceptional lifespan with more that 4000+ cycles (80% DOD), a continuous charge or discharge current of 200A, and a wide range of operating temperatures with the automotive grade battery cells.
• Reliable Protection – Mechanisms Designed with a sturdy internal structure for RV use, and includes more than 60 protections and alarms though the smart battery management system.
• Real-time Monitoring – You can easily get the battery information through the Renogy app (free of charge) and Renogy ONE Core (sold separately) at any time.

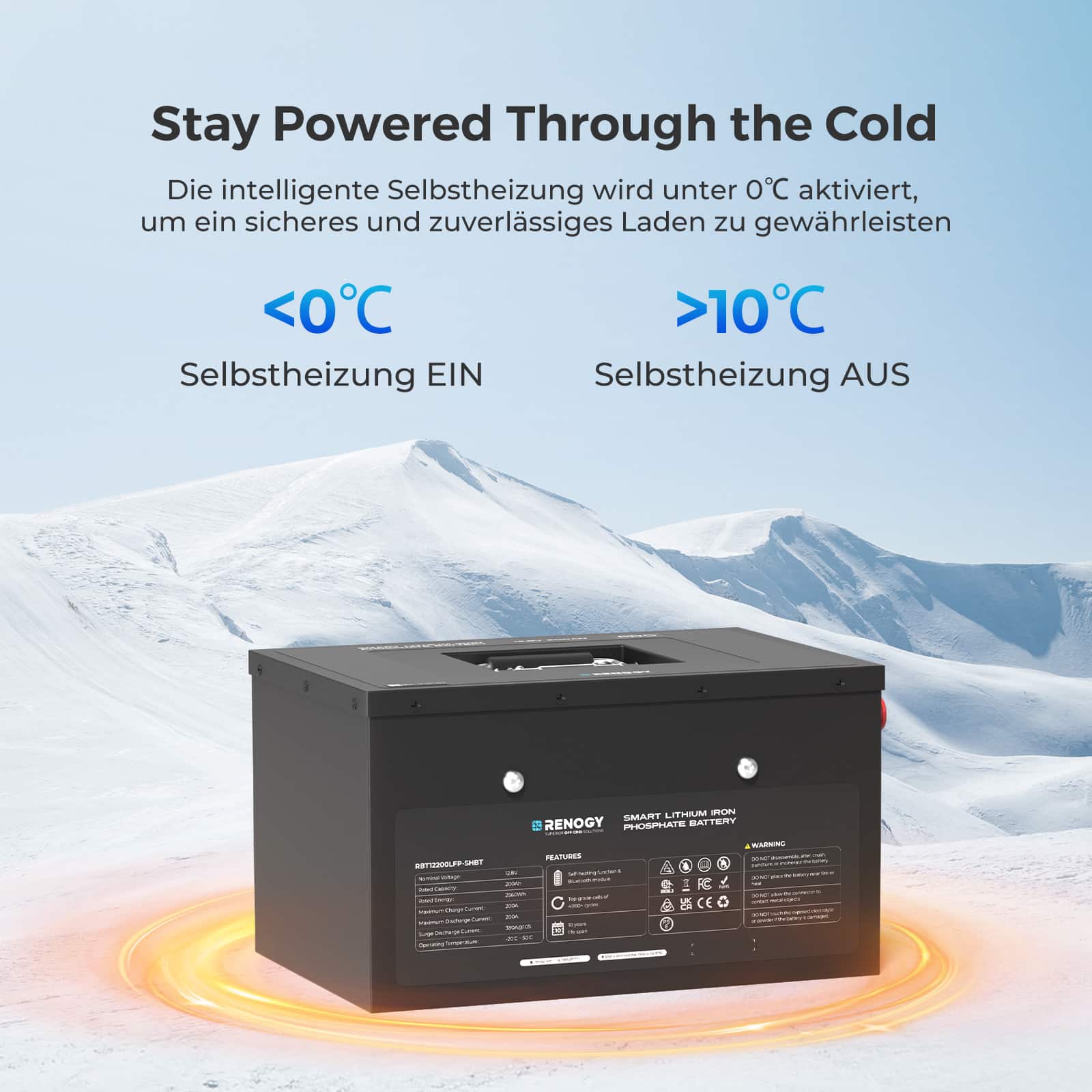

• Intelligent Self-Heating Function & More Stable Performance – The built-in heater operates automatically at low temperatures to keep battery charging, assuring charging performance at low temperatures and increasing battery lifespan.
• Best-in-Class – Capacity and Easy Expansion Up to 16 batteries in 4 series and 4 parallels system connection delivering maximum of 48V (51.2V) 800Ah with 40.96kWh.
• Tailored for the Space Under the RV Seats Tailored for compatibility with caravan’s and motorhomes’s chassis under-seat installation.

SPECIFICATIONS

• Product Code: RBT12200LFP-SHBT
• Battery Cell Type: LiFePO4
• Rated Capacity: 200Ah
• Nominal Voltage: 12.8V
• Voltage Range: 10V to 14.8V
• Cycle Life: 4000 Cycles
• Dimensions: 365 x 225 x 190mm
• Weight: 23kg
• Connection Method: 4S4P
• Terminal Bolt Size: 10N٠m to 12N٠m
• Protection Rating: IP65
• Certifications: MSDS, UN38.3, CE & RoHS
• Charge Voltage: 14.4V
• Maximum Continuous Charge Current: 200A
• Maximum Continuous Discharge Current: 200A
• Peak Discharge Current: 380A @ 10s
• Charge Temperature Range: -20°C to +55°C
• Discharge Temperature Range: -20°C to +50°C
• Storage Temperature Range: -25°C to +65°C
• Operation Relative Humidity: 10% to 95%
