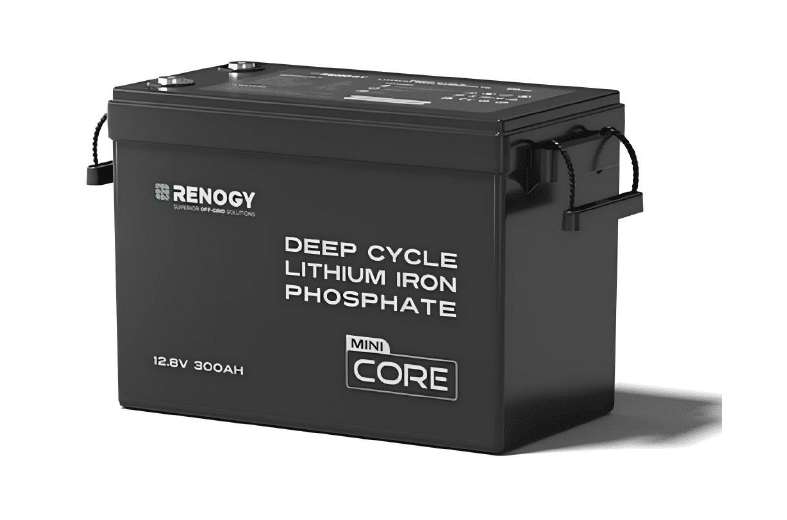

12V 300Ah Core Mini LifePO4 Battery

The Renogy Core Series 12.8V 300Ah Mini Deep Cycle Lithium Iron Phosphate Battery is designed for the drop-in replacement of deep-cycle lead-acid batteries with its standard Battery Council International (BCI) group size.

Weighing only half of the lead-acid counterparts, the battery can be safely discharged to 100% Depth of Discharge (DOD), delivering twice the energy. Manufactured with automotive grade battery cells, the battery features the highest safety standards and an extended 5000+ cycle life. In addition, the reliable Battery Management System (BMS) provides comprehensive protection to the battery.

Key Specification:

• Unparalleled Performance – Features a greater energy density, a deeper discharge capability, a higher round-trip efficiency, and a faster charging speed in a smaller size over counterparts in the market.
• Uncompromising Quality – Ensures an exceptional lifespan with more than 5000 cycles (80% DOD), a continuous charge current of 150A and continuous discharge current of 200A, and a wide range of opera􀆟ng temperatures with the automotive grade battery cells.
• Reliable Protection Mechanisms – Designed with a sturdy internal structure for RV use, and includes multiple levels of protection such as low temperature cut-off and precise balancing through the smart battery management system.
• Equal Capacity in a Compact Size – Provides equal capacity in a more compact size that its counterparts.
• Easy to Expand – Upgrades to Lithium batteries seamlessly with the standard BCI group sizes: up to 16 batteries in 4 series and 4 parallels system connection delivering a maximum of 48V (51.2V) 1200Ah with 61.44kWh.

Specifications:

Battery Cell Type: Lithium Iron Phosphate / Prisma􀆟c Cell
Rated Capacity: 300Ah
Nominal Voltage: 12.8V
Voltage Range: 10V to 14.8V
Cycle Life: 5000 Cycles
Dimension: 384 x 194 x 253 mm
Weight: 25kg
Connection Method: Series & Parallel (4S4P)
Terminal Bolt Size: Terminal Bolt: M8 x 1.25 x 12mm | Long Terminal Bolt: M8 x 1.25 x 16mm
Recommended Terminal Torque: 8N٠m
Protection Rating: IP65
Certification: MSDS, UN38.3, FCC, CE, PSE, RCM, RoHS and UKCA

Operation Parameters:

• Charge Voltage: 14.4V
• Maximum Continuous Charge Current: 150A
• Maximum Continuous Discharge Current: 200A
• Peak Discharge Current: 380A @ 10s
• Charge Temperature Range: 0°C to +60°C
• Discharge Temperature Range: -20°C to +65°C
• Storage Temperature Range: -20°C to +60°C
• Operation Relative Humidity: 5% to 95%
