12V 100Ah CORE Mini LifePO4 Battery

The Renogy Core Series 12.8V 100Ah Mini Deep Cycle Lithium Iron Phosphate Battery is designed for the drop-in replacement of deep-cycle lead-acid batteries with its standard Battery Council International (BCI) group size (G22NF).

Weighing only half of the lead-acid counterparts, the battery can be safely discharged to 100% Depth of Discharge (DOD), delivering twice the energy. Manufactured with automotive grade battery cells, the battery features the highest safety standards and an extended 5000+ cycle life. In addition, the reliable Battery Management System (BMS) provides comprehensive protection to the battery.

Key Features:

• Unparalleled Performance: Features a greater energy density, a deeper discharge capability, a higher round-trip efficiency, and a faster charging speed in a smaller size over counterparts in the market.
• Uncompromising Quality: Ensures an exceptional lifespan with more than 5000 cycles (80% DOD), a continuous charge/discharge current of 100A, and a wide range of operating temperatures with the automotive grade battery cells.
• Reliable Protection Mechanisms: Designed with a sturdy internal structure for RV use, and includes multiple levels of protection such as low temperature cut-off and precise balancing through the battery management system.

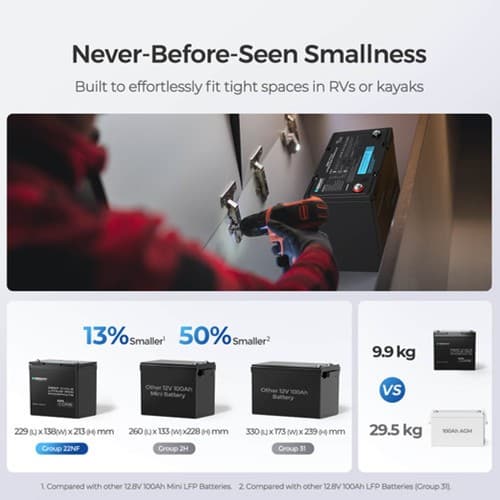

• Equal Capacity in a Compact Size: Provides equal capacity in a more compact size than its counterparts.
• Easy to Expand: Upgrades to lithium batteries seamlessly with the standard BCI group sizes; up to 16 batteries in 4 series and 4 parallels system connection delivering a maximum of 48V (51.2V) 400Ah with 20.48 kWh.

Techinical Specifications:

• Battery Cell Type: Lithium Iron Phosphate
• Rated Capacity: 100Ah
• Nominal Voltage: 12.8V
• Charge Voltage Range: 10V to 14.8V
• Cycle Life: 5000 Cycles
• Connection Method: Series & Parallel (4S4P)
• Charge Voltage: 14.4V
• Maximum Continuous Charge Current: 100A
• Maximum Continuous Discharge Current: 100A
• Peak Discharge Current: 300A@10s
