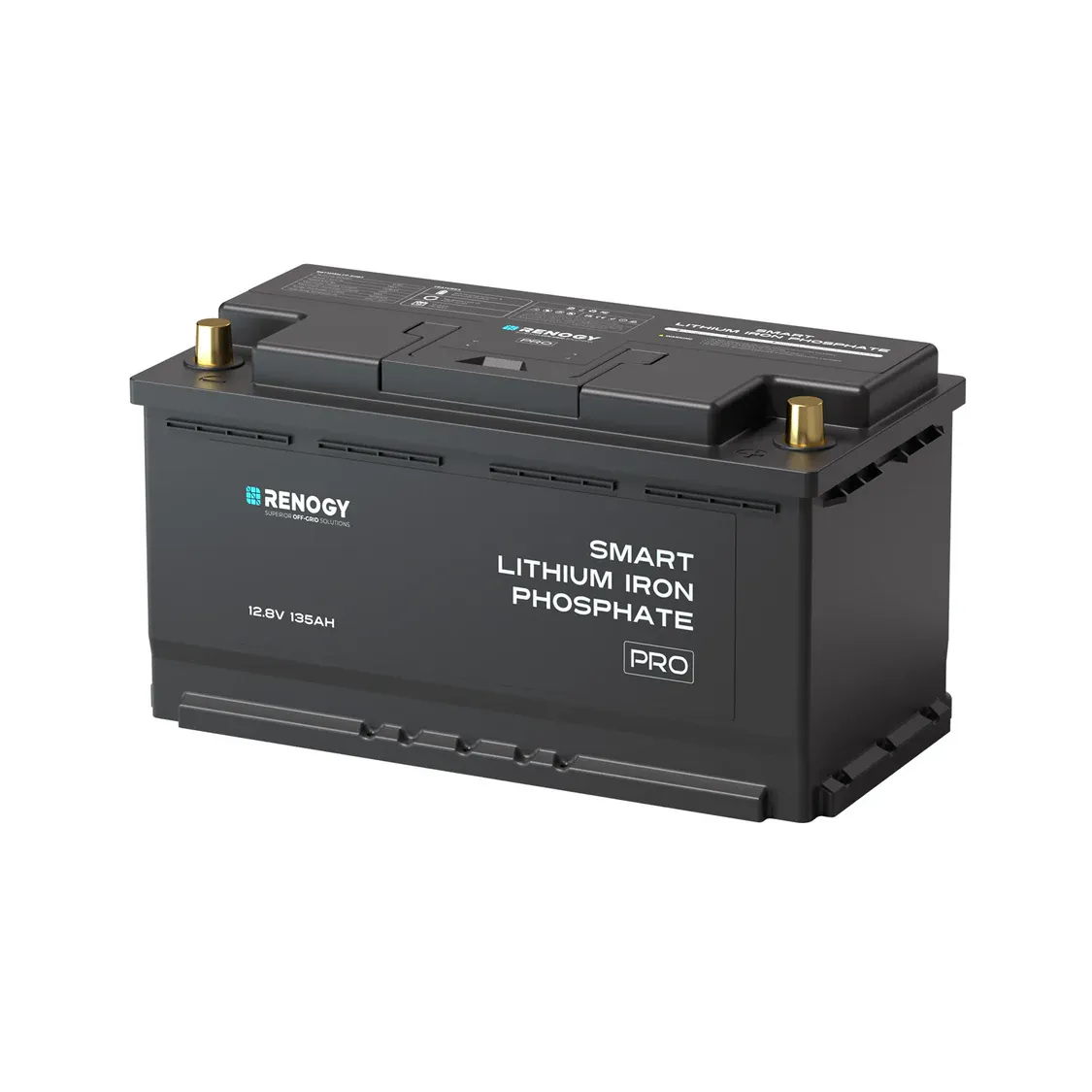

12V 135Ah Pro Underseat Smart LifePO4 Battery

The Renogy Pro Series 12.8V 135Ah Under-seat Lithium Iron Phosphate Battery adopts a proprietary battery housing
material in a smaller size for your RVs, solar setups, trolling motors, wind and marine applications, camping, off-grid systems, and more.

Weighing only half of the lead-acid counterparts, the battery can be safely discharged to 100% Depth of Discharge (DOD), delivering twice the energy. Manufactured with automotive grade battery cells, the battery features the highest safety standards and a extended 4000+ cycle life. In addition, the Battery Management System (BMS) provides comprehensive protection to the battery.

• Unparalleled Performance – Features a greater energy density, a deeper discharge capability, a higher round-trip efficiency, and a faster charging speed in a smaller size over counterparts in the market.
• Uncompromising Quality – Ensures an exceptional lifespan with more than 4000 cycles (80% DOD), a continuous charge or discharge current of 135A, and a wide range of opera􀆟ng temperatures with the automotive grade battery cells.
• Reliable Protection Mechanisms – Designed with a sturdy internal structure for RV use, and includes more than 60 protections and alarms thought the smart battery management system.
• Real-time Monitoring – You can easily get the battery information through the Renogy app (free of charge) and Renogy ONE Core (sold separately) at any time.
• Intelligent Self-Heating Function & More Stable Performance – The built-in heater operates automatically at low temperatures to keep the battery charging, assuring charging performance at low temperature and increasing battery lifespan.
• Best-in-class Capacity and Easy Expansion – Up to 16 batteries in 4 series and 4 parallels system connection delivering a maximum of 48V (51.2V) 540Ah with 24.648kWh.
• Tailored for Under-seat Installation – Specifically designed to fit the space beneath RV seats, ensuring efficient use of limited interior space.
• Battery Cell Type: Lithium Iron Phosphate
• Rated Capacity: 135Ah
• Nominal Voltage: 12.8V
• Voltage Range: 10V to 14.8V
• Cycle Life: 4000 Cycles
• Connection Method: Series & Parallel (4S4P)
• Copper Terminal Diameter: 18mm
• Protection Rating: IP65
• Certification: MSDS, UN38.3, CE, RoHS

OPERATION PARAMETERS

• Charge Voltage: 14.4V
• Maximum Continuous Charge Current: 135A
• Maximum Continuous Discharge Current: 135A
• Peak Discharge Current: 350A @ 3s
• Charge Temperature Range: -20°C to 55°C
• Discharge Temperature Range: -20°C to 50°C
• Storage Temperature Range: -25°C to 65°C
• Operation Relative Humidity: 10% to 95%
