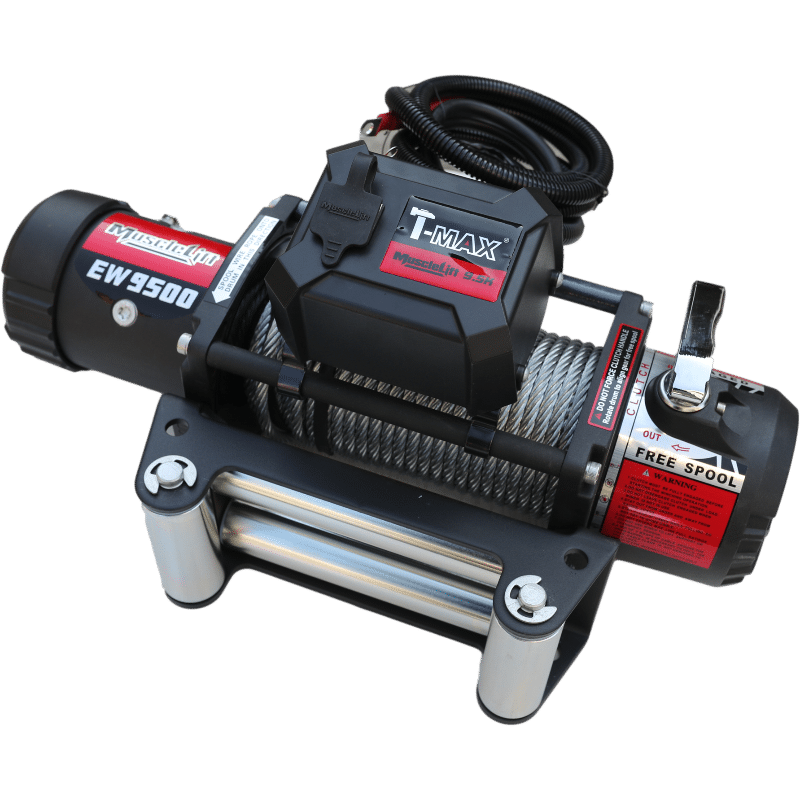

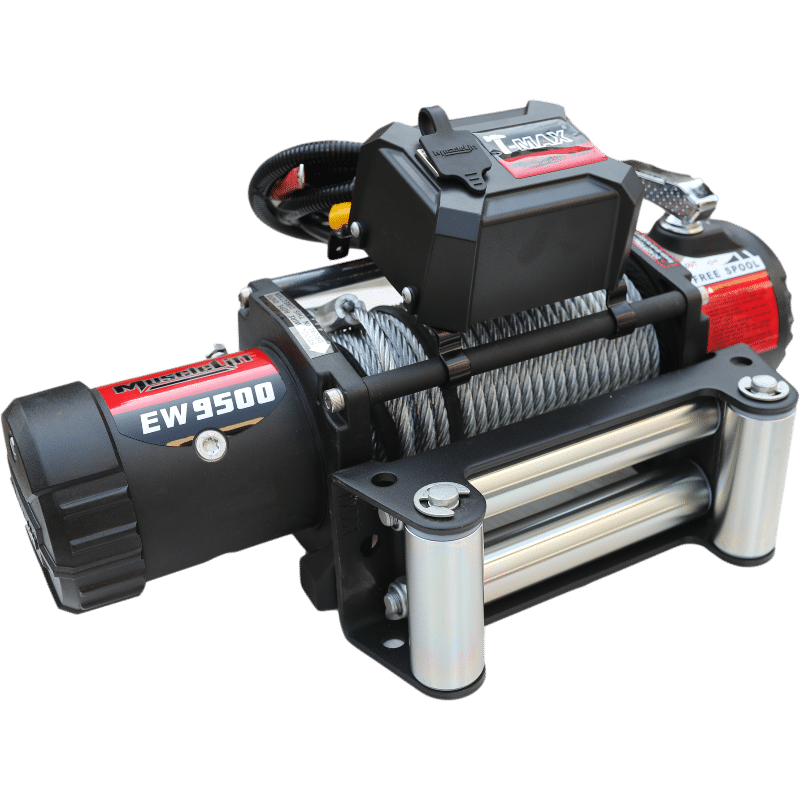

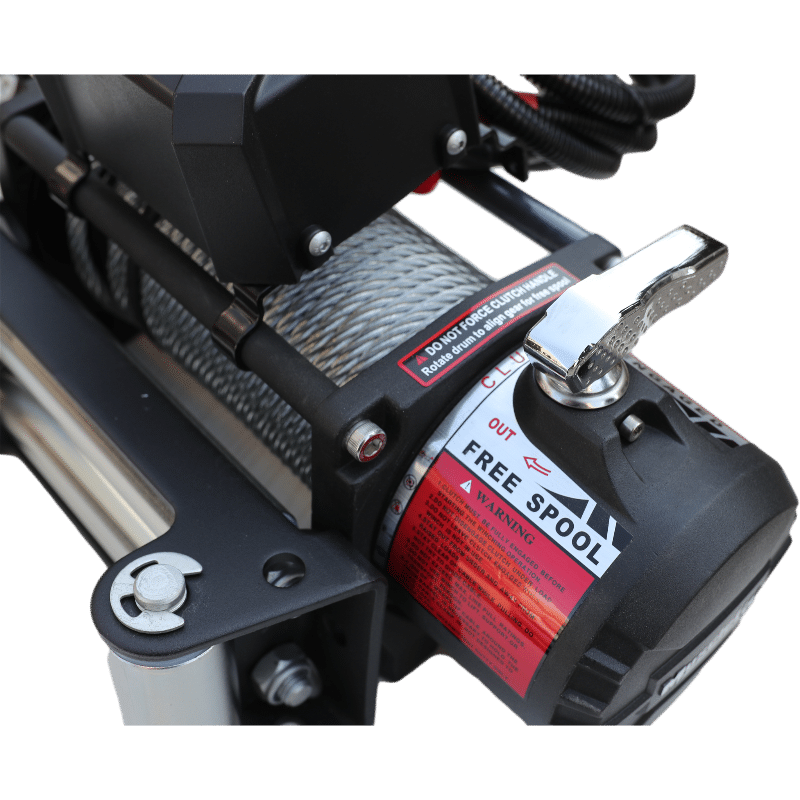

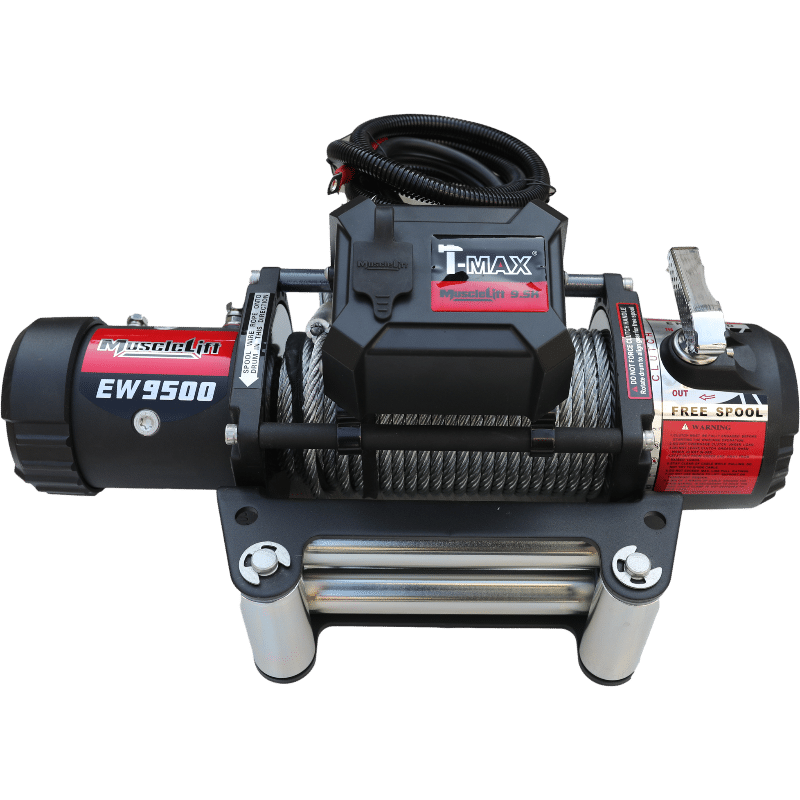

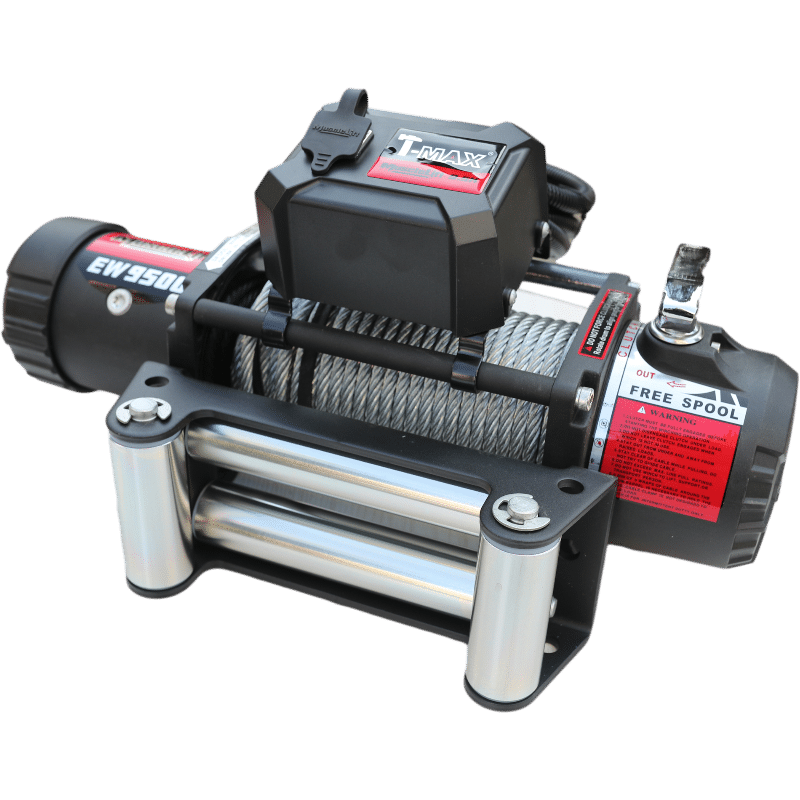

TMax Musclelift EW-9500 lbs Winch – Wire Rope

The Musclelift EW-9500 Winch is a powerful and reliable solution for off-road recovery and heavy-duty applications. Designed with precision engineering and robust materials, this winch ensures dependable performance in the most challenging conditions.

Key Features:

• Impressive Pulling Capacity: Rated for a single-line pull of 9,500 lbs (4,309 kg), making it ideal for demanding recovery tasks.
• High-Performance Motor: Equipped with a 6.6HP series wound motor available in both 12V and 24V options for consistent and efficient operation.
• Advanced Gear System: Features a 3-stage planetary gear train with a 161.28:1 gear ratio for smooth and reliable performance.
• Durable Wire Rope: Includes a 94 ft (28.5m) wire rope with a 5/16-inch diameter, ensuring strength and durability for heavy-duty use.
• Precision Control: Comes with a 12-foot (3.7m) remote switch for safe and convenient operation.
• Enhanced Safety: Automatic in-the-drum braking system ensures secure and controlled operation during recovery.
• Robust Construction: Finished in black for a sleek look and built to withstand tough environments.
• Compact and Sturdy Design: With overall dimensions of 20.83″ x 6.3″ x 7.8″ (529 x 160 x 196mm) and a weight of 77 lbs (35 kg), this winch is both durable and portable.

Technical Specifications:

• Drum Size: Diameter 2.5 inches (63.5mm) x Length 8.75 inches (222mm)
• Mounting Bolt Pattern: 10.00 x 4.50 inches (254.0 x 114.3mm)
• Line Speed & Amp Draw (12V):
  • No Load: 35.42 ft/min (10.8 m/min) at 80 amps
  • 9,500 lbs Load: 6.89 ft/min (2.1 m/min) at 415 amps
• Line Speed & Amp Draw (24V):
  • No Load: 41 ft/min (12.5 m/min) at 48 amps
  • 9,500 lbs Load: 11.81 ft/min (3.6 m/min) at 215 amps
• Cable Capacity per Layer:
  • 1st Layer: 16 ft (5m) at 9,500 lbs
  • 4th Layer: 94 ft (28m) at 7,086 lbs
• Recommended Battery: 650CCA minimum for optimal performance
• Battery Leads: 72 inches (1.83m), 25mm²

What’s Included:

• Musclelift EW-9500 Winch
• 94 ft Wire Rope
• 4-Way Roller Fairlead
• Remote Control with 12 ft Lead

Whether you’re navigating rugged terrains, recovering vehicles, or tackling heavy-duty tasks, the Musclelift EW-9500 Winch is your trusted partner. Its combination of power, precision, and durability ensures you’re always prepared for the unexpected.
