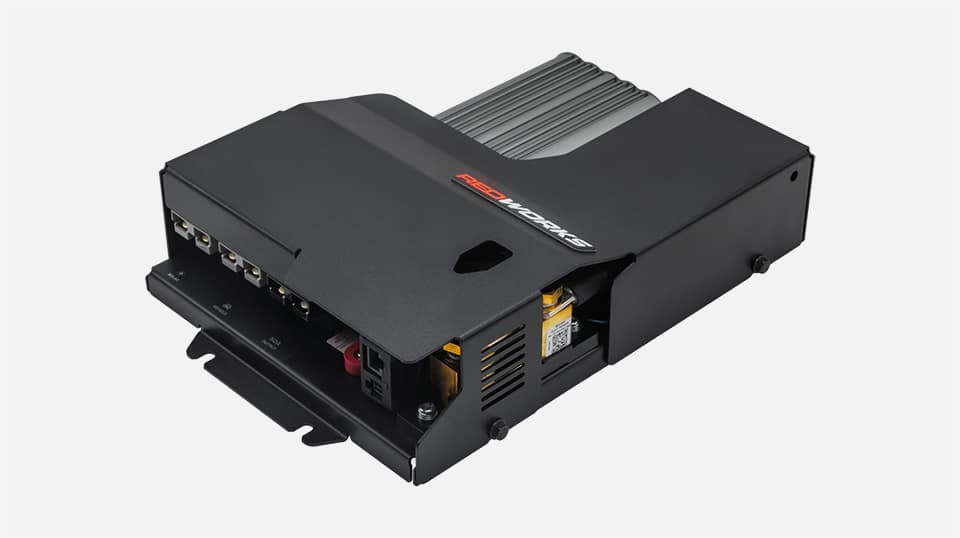

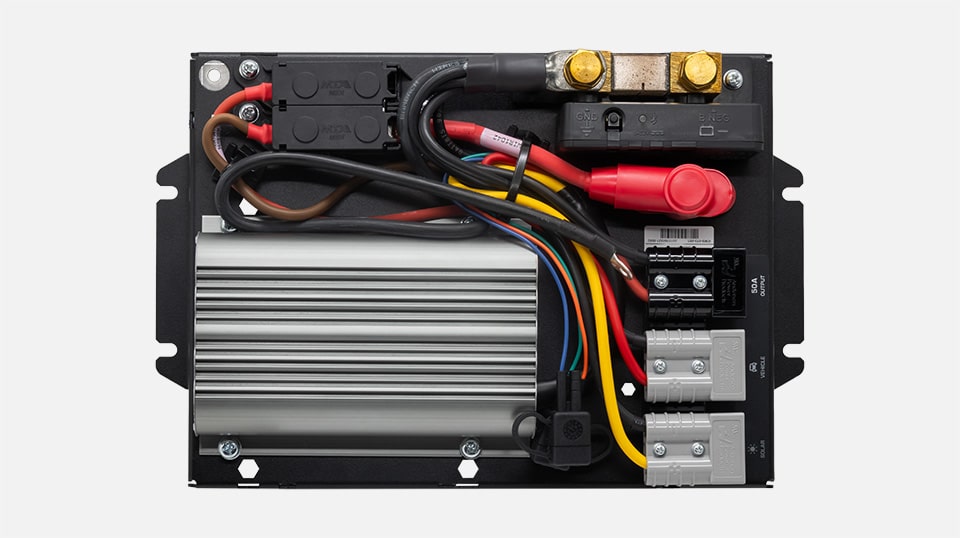

REDWorks Scout50 Power Panel

A compact pre-wired dual battery system with battery monitoring, REDWorks Scout panels are ideal for weekend adventurers who want reliable power without the complexity. Whether you’re keep

INTELLEGENT CHARGE ON THE GO

Charge while you drive, or anytime the sun is out with the most capable DC charger on the market and an in-built MPPT solar regulator. Green Power Priority® charges from both sources simultaneously, prioritizing solar to minimize the load on your vehicle alternator.

Unlike standard DC chargers, the BCDC Alpha50 R adjusts it’s charge mode in real time to meet your battery’s needs, maximizing efficiency and extending lifespan, functioning as a true battery manager.

Charge all common automotive battery types including heated and standard Lithium (LiFePO₄). The included BCDC Charger features LED indication for clear communication of the charge process and fault detection.

Gain full control of your power with configurable input current limits to align with your system requirements and protect your electrical system. The Scout50 is perfect for hybrid and EVs.

Scout50’s Start Battery Charging uses excess solar to keep your start battery topped up. Additionally, the included BCDC Alpha50 R features Start Battery Recovery. It can recover a flat start battery in just 15 minutes with just the touch of a button.

READY-TO-GO POWER

Connect your essentials in seconds with easy-access Anderosn plugs. Whether it’s a fridge or a solar panel, your system’s ready when you are.

With the BCDC Alpha50 R on board, the Scout50 can use excess to automatically top up the start battery when the auxiliary battery is full.

Plug in portable or fixed solar to charge from the sun with a built in MPPT Solar regulator and REDARC’s Green Power Priority® technology.

Charge up to 50A directly from the alternator while driving, so whether you’re heading to camp or the worksite your system is charged and ready to go.

The 50A Anderson™ output is ideal for high-power devices drawing up to 50A such as 12V fridges, large compressors or electric jacks.

ADVANCED MONITORING

Stay on top of your system with state of charge percentage, time remaining, and charger performance – delivered straight to your mobile device.

Track your system performance in real time. Have full visibility of your battery’s state of charge, remaining run time and input/output current from your smartphone. The LED interface on the BCDC charger also gives clear status and fault indicators.

OUT OF SIGHT, OUT OF MIND

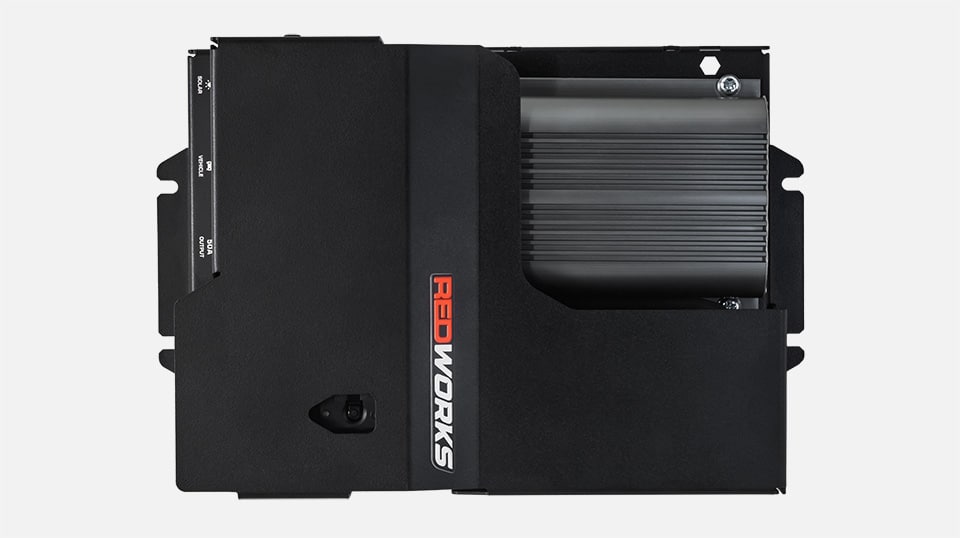

Built for tight spaces, the Scout50 pre-wired dual battery system fits behind drawers, under seats or in places no other full system can, delivering serious capability without stealing your space. At the size of an A4 piece of paper, the Scout50 delivers up to 50A of charging from both DC and solar sources – maximizing performance, whether you’re parked or on the move.

ing the fridge cold or the lights on after dark, Scout is your no-fuss companion for simple setups.
